8355P-JPL

5G Customer Service

The 8355P-JPL 5G CPE features an innovative design that allows for flexible indoor and outdoor installation, enabling optimal placement for best reception. Its industry-leading MIMO antenna design delivers exceptional performance, ensuring capacity and coverage wherever it's deployed. Ultra-fast data communication and reduced latency, achieved through a high-performance multi-core CPU and sub-6 GHz carrier aggregation (DL up to 4CA and UL up to 2CA), provide the ultimate user experience.

Optimal use

  • Fixed Wireless Access (FWA)
  • Last-mile connection
  • Private network
  • General household users or small and medium-sized business users
  • Remote worker
  • Latency-sensitive and bandwidth-intensive applications


Main features

Redefining Fixed Wireless Access (FWA)

With support for 6G Sub-6 GHz SA, you can take full advantage of all the features of 5G that reach gigabit speeds and achieve high-speed network connectivity.

It can be flexibly deployed on both local 5G NR networks and LTE networks.


User-installable

This solution is ideal for users who prefer the freedom and ease of self-installation rather than waiting for technical support visits, reducing operational costs and deployment time for telecommunications carriers. Setup is simple using a mobile app, which assists users with installation location, activation, and network connectivity.


Advanced MIMO antenna technology

In demanding deployment environments such as fixed wireless access (FWA), antenna technology that meets capacity and throughput requirements is essential. The built-in high-gain 4x4 MIMO directional antenna enables increased capacity, maximized bandwidth, and extended coverage.


Wi-Fi 6 AX1800 Wireless Compatible

Ultra-high-speed dual-band 802.11ax at 1800 Mbps is available. Equipped with MU-MIMO, it can communicate with multiple devices simultaneously, improving network efficiency in high-density networks.

BECentral® CloudEdge Service

BECentral® CloudEdge is an industry-leading cloud-based service platform that facilitates LTE/5G wireless WAN connectivity.

Designed to support deployments of all scales, this platform enables zero-touch provisioning, real-time analytics through its built-in visual dashboard, detailed reporting, historical analysis, performance monitoring, proactive alerts/notifications, and third-party integrations via API extensions.

Supported frequency bands*1

  • 5G NR sub-6 GHz (3GPP Release 16)

    • SA: n41, n77, n78, n79

    Carrier aggregation: 4CA DL / 2CA UL DL 4×4, MIMO: n41, n77, n78, n79 UL 2×2, MIMO: n77, n78, n79 UL 1×1: n41

  • 4G LTE (DL Category 19 / UL Category 18)

    • TDD: B41, B42

    Carrier aggregation: 5CA DL / 2CA UL MIMO: DL 4×4

    Application Scenes

    specification


    ◼ Network protocols and functions

    • IPv4、IPv6*2
    • Dual APN*2
    • To continue living
    • Keep Alive
    • NAT, virtual servers, DMZ
    • Static routing, dynamic routing (RIP-1/2)
    • SNTP, DNS relay
    • Universal Plug and Play (UPnP)
    • DHCP server/client support


    ◼ Firewall

    • Built-in NAT firewall
    • Stateful Packet Inspection (SPI)
    • Prevents DoS attacks such as LAND attacks and Ping of Death.
    • Access control
    • IP filtering, MAC filtering
    • VPN passthrough


    ◼ Management

    • Password protection for system administration
    • Web-based GUI for remote/local management
    • Web-based GUI for firmware upgrades and configuration data backup/restore.
    • TR-069（CWMP）*2 、SNMP
    • Sys threat monitoring
    • BECentral® Cloud-Based Remote Management


    ◼ Wi-Fi6

    • IEEE 802.11AX/AC/N/A @5GHz
    • IEEE 802.11ax/n/b/g @2.4GHz


    Maximum data transmission speed of the physical layer

    • 5GHz: 1201Mbps (802.11ax)
    • 2.4GHz:574Mbps (802.11ax)


    Hardware specifications


    ◼ Physical Interface

    • 2.5 Gigabit Ethernet port (802.3at PoE PD compatible) x1
    • Built-in eSIM x1 (Optional) *2
    • 2FF mini-SIM slot x1
    • Reset button x1
    • LED indicators: Power, 5G signal, Internet, Wi-Fi


    ◼External connector

    • Ethernet port: RJ-45
    • SIM slot: 2FF mini-SIM


    ◼IP Evaluation

    • IP-65 rated housing


    ◼Power Supply Components

    • PoE 802.3at (PD)


    ◼Physical specifications

    • Outer diameter: 230mm
    • Height: 55mm

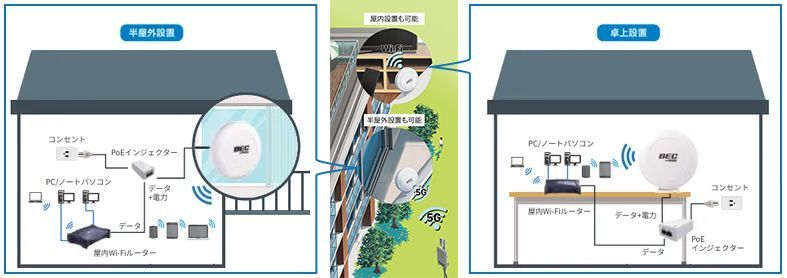

    ◼ How to set it up

    • Pillars, walls, window frames, tabletops


    ◼Operational Environment

    • Operating temperature: -40°C ~ 55°C

    Note:

    1. Please contact your local service provider to inquire about the availability of 5G NR/4G LTE.

    2. Only if specified as a product supplied by a telecommunications carrier/ISP.

    3. The specifications on this page are subject to change without notice.
