8235-JPL

Local 5G NR High-Capacity Outdoor Router

The 8235-JPL Local 5G NR High-Capacity Outdoor Router creates numerous opportunities in the Fixed Wireless Access (FWA) market (* urban periphery), delivering a superior broadband experience to users. Designed with performance in mind, the 8235-JPL complies with 3GPP Release 16 and supports 5G sub-6GHz Standalone (SA) mode and Category 19 LTE connectivity. BECbyBILLION's technological innovations enable ultra-fast data communication, reduced latency, expanded coverage, and increased network capacity. Our reliable connectivity solutions help many customers expand their services.

Optimal use

  • Fixed Wireless Broadband
  • Alternative solutions for last-mile action
  • Mission-critical, performance-oriented network
  • Various industrial network connectivity applications
  • Environments in urban areas and rural areas

Main features

Redefining Fixed Wireless Access (FWA)

With support for 5G Sub-6 GHz SA, you can fully utilize the capabilities of 5G to achieve gigabit-class high-speed network connectivity. It can be flexibly deployed on both local 5G NR and LTE networks.


Robust waterproof design

The 8235-JPL boasts superior durability and is constructed entirely of industrial-grade components. Its unique GORE® vents allow for pressure regulation, humidity control, and ventilation, improving performance, reliability, and lifespan. The housing is IP68 rated, providing dust and water resistance and operation in extreme temperatures. Furthermore, surge protection ensures reliable operation over many years.


Advanced MIMO antenna technology

In demanding deployment environments such as fixed wireless access (FWA), antenna technology that meets capacity and throughput requirements is essential. The built-in, high-performance 4x4 MIMO DL / 2x2 MIMO UL directional antenna enables increased capacity, maximized bandwidth, and extended coverage.


BECentral® CloudEdge Service

BECentral® CloudEdge is the industry's leading cloud-based deployment management tool. It helps deploy LTE/5G wireless WAN connectivity environments of all sizes. It enables zero-touch provisioning of communications equipment, real-time analytics, detailed reporting, time-series analysis, performance monitoring, graphical dashboards including alerts/notifications, and third-party integration via APIs.


Supported frequency bands*1

  • 5G NR sub-6 GHz (3GPP Release 16)

    • SA bands: n3, n28, n41, n77, n78, n79

    Carrier aggregation: 4CA DL / 2CA UL

    MIMO: DL 4×4、UL 2×2 n3、n77、n78、n79

    MIMO: DL 4×4、UL 1×1 n41


  • 4G LTE (DL: Category 19 / UL: Category 18)

    • FDD: B1

    TDD: B41、B42

    Carrier aggregation: 3CA DL / 2CA UL

    OUTSIDE: DL 4×4

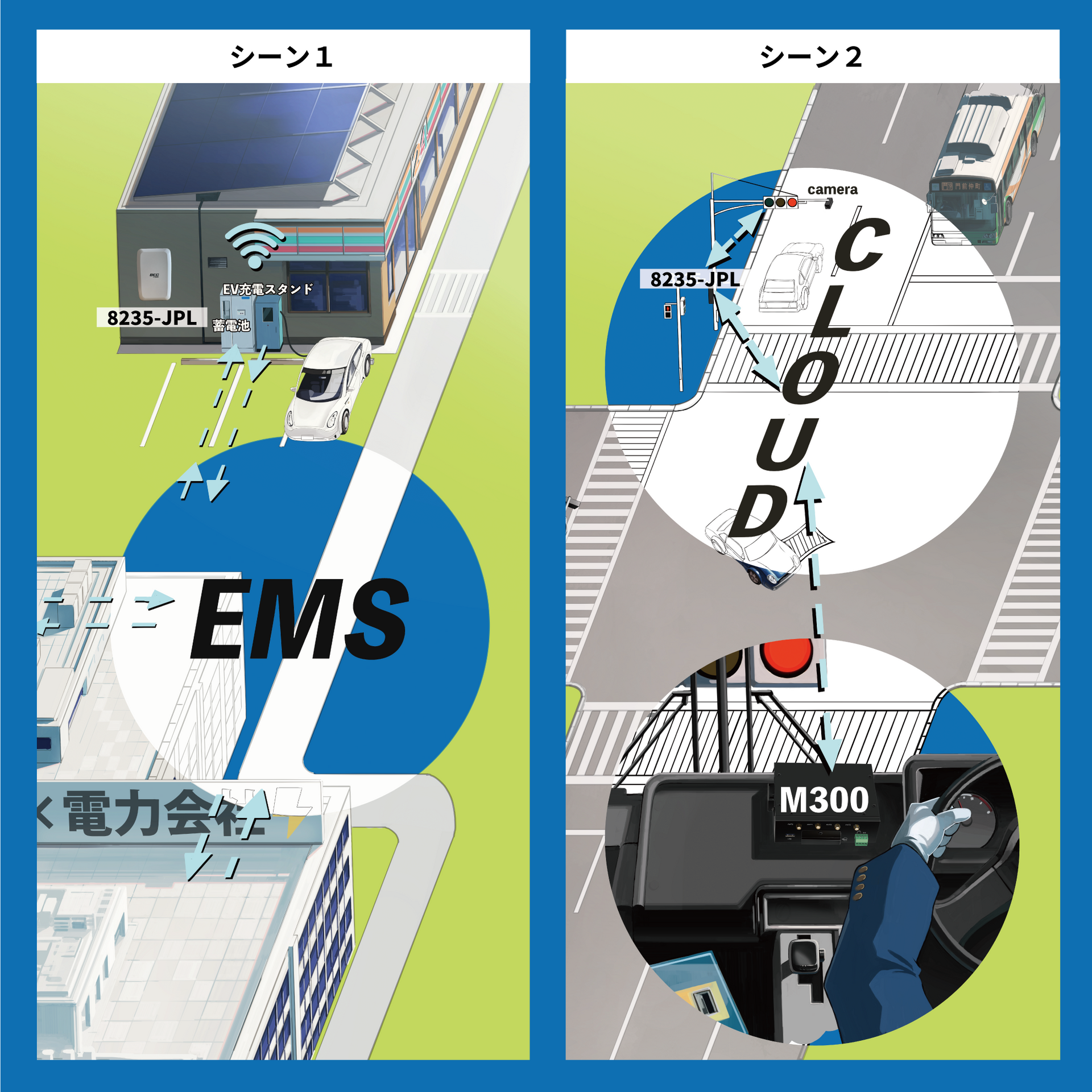

    Application Scenes

    specification


    ◼ Network protocols and functions

    • IPv4、IPv6*2
    • Dual APN*2
    • Keep Alive
    • NAT, virtual servers, DMZ
    • Static routing, dynamic routing
    • （RIP-1/2）
    • SNTP, DNS relay
    • Universal Plug and Play (UPnP)
    • DHCP Server/Client Support


    ◼ Firewall

    • Built-in NAT firewall
    • Stateful Packet Inspection (SPI)
    • Prevents DoS attacks such as LAND attacks and Ping of Death.
    • Access control
    • IP filtering, MAC filtering
    • VPN passthrough


    ◼ Management

    • Password protection for system administration functions
    • Web-based GUI for remote/local management
    • Web-based GUI firmware upgrade
    • and backup/restore of configuration data
    • TR-069（CWMP）*2、SNMP
    • Sys threat monitoring
    • Cloud-based remote management with BECentral®


    ◼ Surge / ESD protection

    • Surge protection: K.21 common mode ±6 kV
    • ESD protection: IEEE 61000-4-2
    • Contact discharge: ±8 kV / Gas discharge: ±15 kV

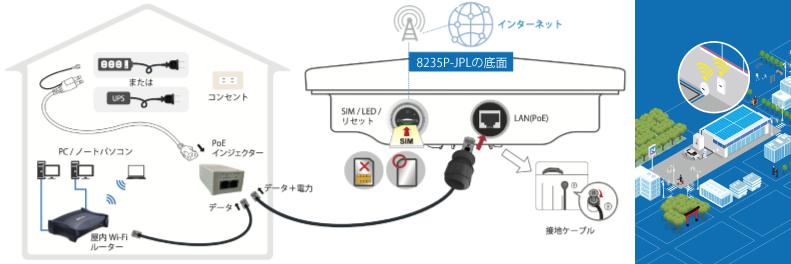

    Hardware specifications


    ◼ Physical Interface

    • 2.5 Gigabit Ethernet port (802.3at PoE PD compatible) x 1
    • Built-in eSIM 1 (optional) *2
    • 2FF mini-SIM slot (1)
    • One reset button
    • LED indicators: Power, 5G signal, Internet
    • One grounding connector
    • One ventilation hole


    ◼External connector

    • One Ethernet port: RJ-45
    • One SIM slot: 2FF mini-SIM
    • One grounding connector
    • One ventilation hole

    ◼IP Level

    • IP67 rated housing


    ◼Power Supply Components

    • PoE 802.3at (PD)


    ◼Physical specifications

    • Dimensions: 321 x 210 x 77.6 mm


    ◼Setup Method

    • Pillars, walls


    ◼Action Environment

    • Operating temperature: -40 °C to 60 °C


    Note:

    1. Please contact your local service provider to inquire about the availability of 5G NR/4G LTE.

    2. Only if specified as a product supplied by a telecommunications carrier/ISP.

    3. The specifications on this page are subject to change without notice.
