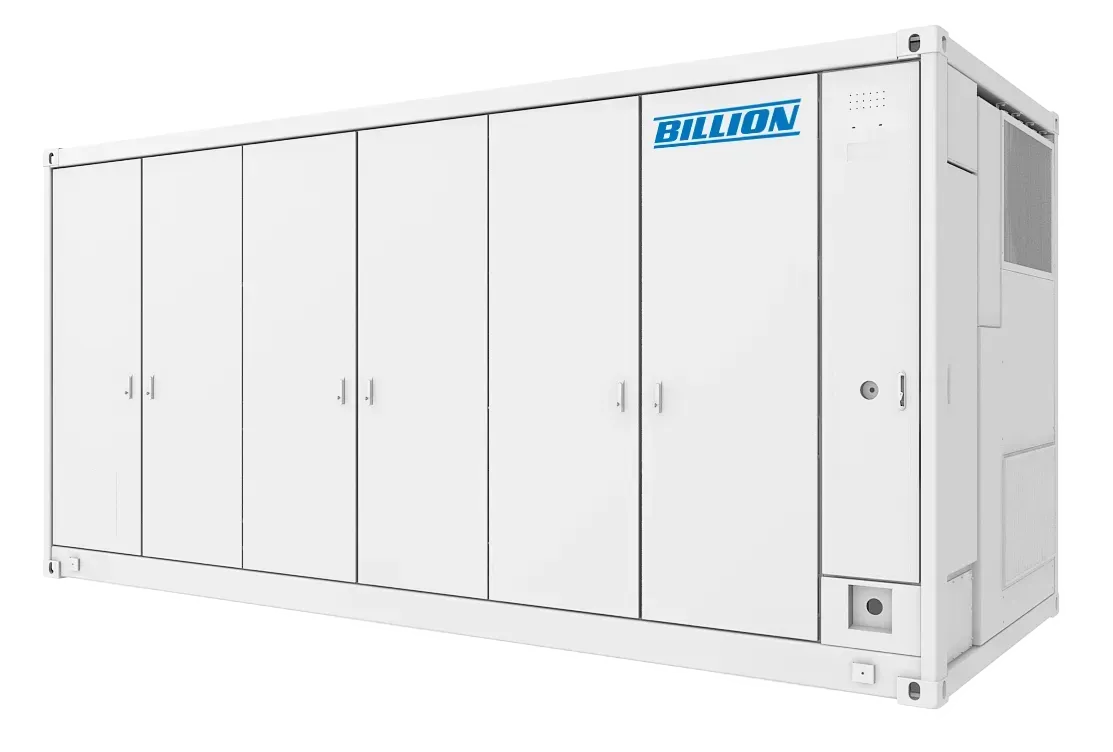

Container-type energy storage system

Fusion 5,015MWh

Designed to comply with 20-foot ISO container standards.

It employs a liquid-cooled energy storage system and 314Ah prismatic LFP cells. Optimized internal design achieves both high energy density and excellent cooling performance, resulting in a longer battery life.


Further enhanced safety ensures high reliability and stable operational performance. It is suitable for a wide range of applications, including industrial use, public infrastructure, and grid services.

Technical specifications

project parameter remarks
Configuration 6 racks
Rated energy 6 racks: 5,015.9 kWh 0.5P, 25°C
Rated voltage 1,331.2 V
Operating voltage 1.040 ~ 1.500V
Maximum charging and discharging power 0.5P
Communication interface CAN, RS485, Ethernet
Communication protocol CAN, Modbus RTU, Modbus TCP
Thermal Management Liquid cooling
Waterproof and dustproof rating Container: IP55 Module: IP67
Salt damage protection C5
Dimensions (mm) 6,058(W) x 2,438(D) x 2,896(H)
weight 6 racks : < 42,000 kg 5 racks: < 35,000 kg

*The specifications and contents of this product are subject to change without notice. *We are not responsible for any damages caused by errors, omissions, or inaccuracies (express or implied) in the contents described. *Please contact your sales representative for the latest specifications.

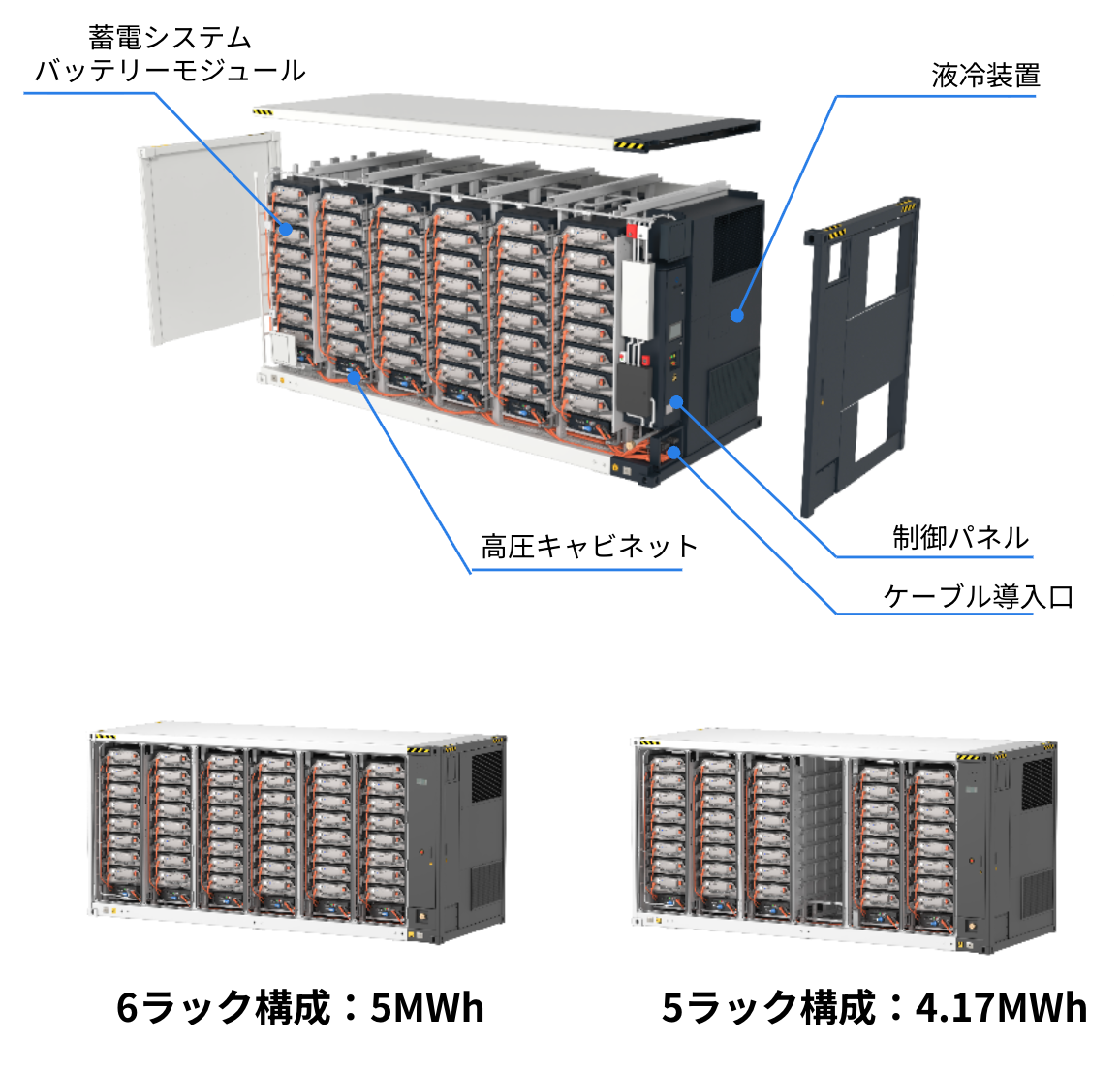

Main Configuration Diagram

Product Features


Advanced Integrated Design


  • Assembly and testing are performed before shipment, reducing on-site work and contributing to shorter construction periods.
  • One PCS can connect up to four containers and is suitable for 2 to 8 hours of energy storage.


Safe and highly reliable design


  • Liquid cooling technology ensures excellent thermal stability.
  • Equipped with a multi-layer active fire suppression system (compliant with NFPA 855).
  • The use of LFP cells achieves a high cycle life.
  • Equipped with a dedicated cell monitoring and protection system.


LCOE reduction design


  • Advanced thermal management maintains the optimal operating temperature, ensuring stable output.
  • High-density design integrating thermal management, fire protection, and battery management.

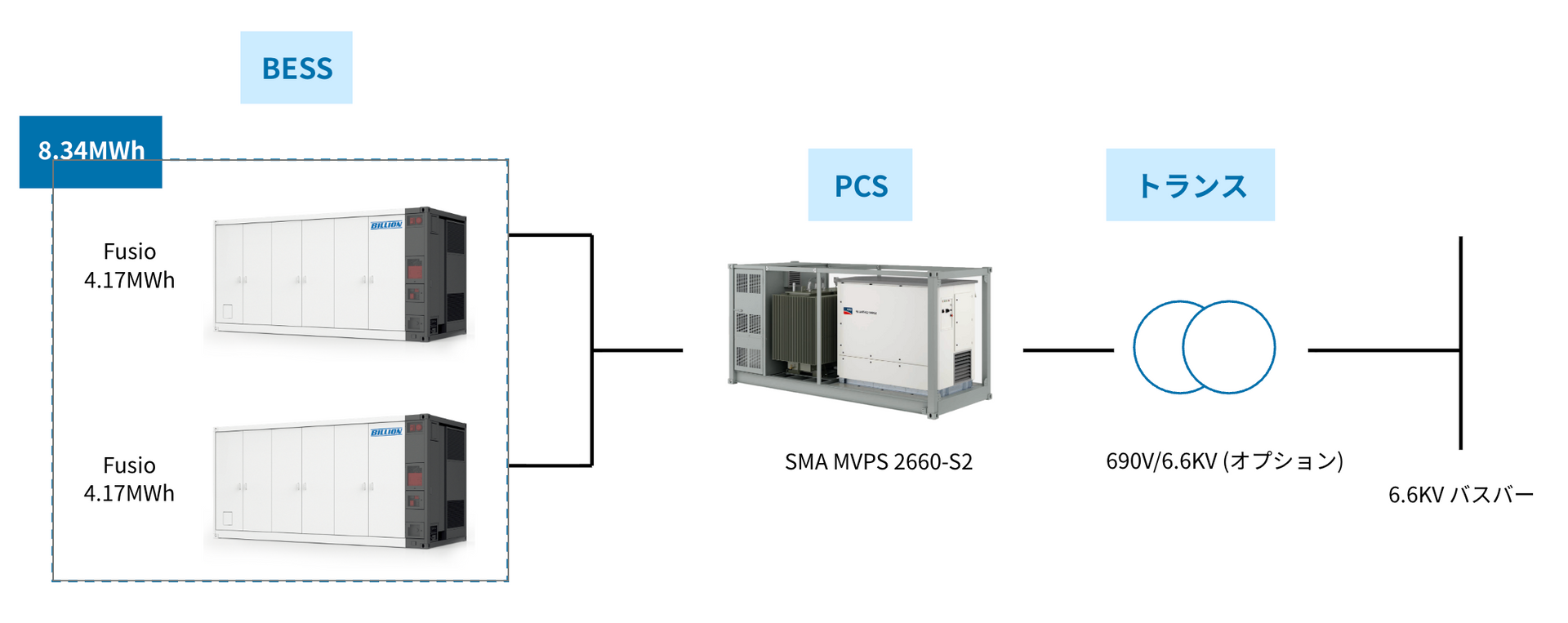

System Configuration Overview
