Cabinet-type energy storage system

Fusion

215kWh/258kWh/344kWh

The basic warranty is 5 years.

Extended warranty covers up to 20 years.


  • The liquid cooling system ensures high thermal stability.
  • Equipped with a multi-stage active fire suppression system (compliant with NFPA 855).
  • Advanced thermal management and safety control using BMS
  • Ideal for meeting capacity requirements for factories and large-scale consumers.

Technical specifications

Fusion

MC Cabinet
size 1300mm(w)×1300mm(D)×235mm0(H)
Rated energy 344kWh (8 modules)
Fixed capacity 280Ah
Rated voltage 960V~1401.6V
Maximum charging and discharging power 0.5P
BMS Communication CAN
IP Level IP55 (Module IP67, High-voltage box IP65)
Salt damage resistant specifications C5-M
weight Approximately 3.5 tons

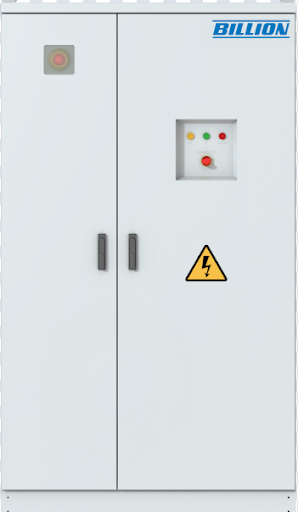

MC Cabinet

Master Combiner

MC Cabinet
size 1300mm(w)×860mm(D)×2350mm(H)
Stator current 140A*N (N is the number of Fusio cabinets)
Rated voltage 1228.8V
Operating voltage 960V~1401.6V
Communication protocol CAN, Modbus RTU, Modbus TCP, IEC61850 (optional)
IP Level IP55
Salt damage resistant specifications C5-M
weight Approximately 750 kg

*The specifications and contents of this product are subject to change without notice. *We are not responsible for any damages caused by errors, omissions, or inaccuracies (express or implied) in the contents described. *Please contact your sales representative for the latest specifications.

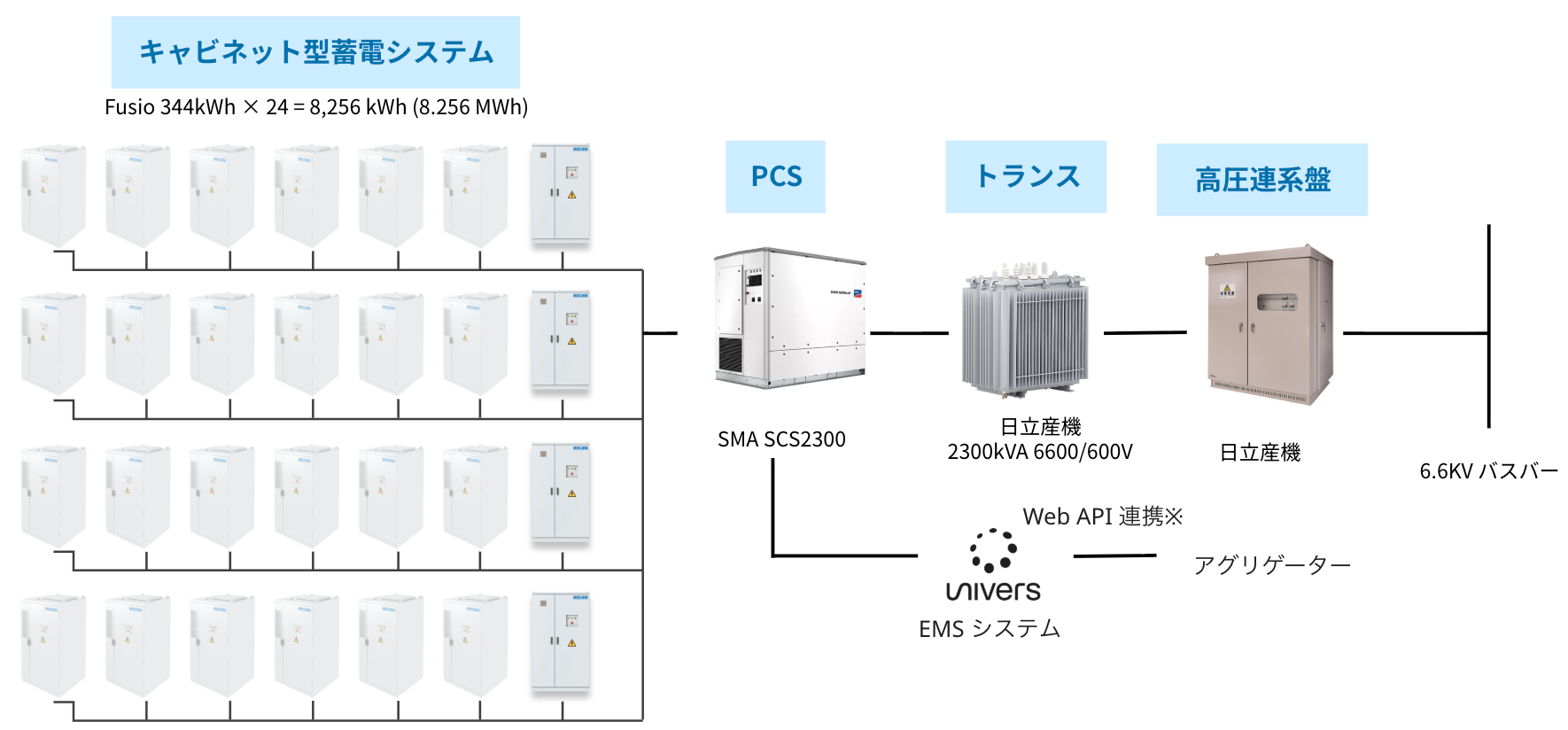

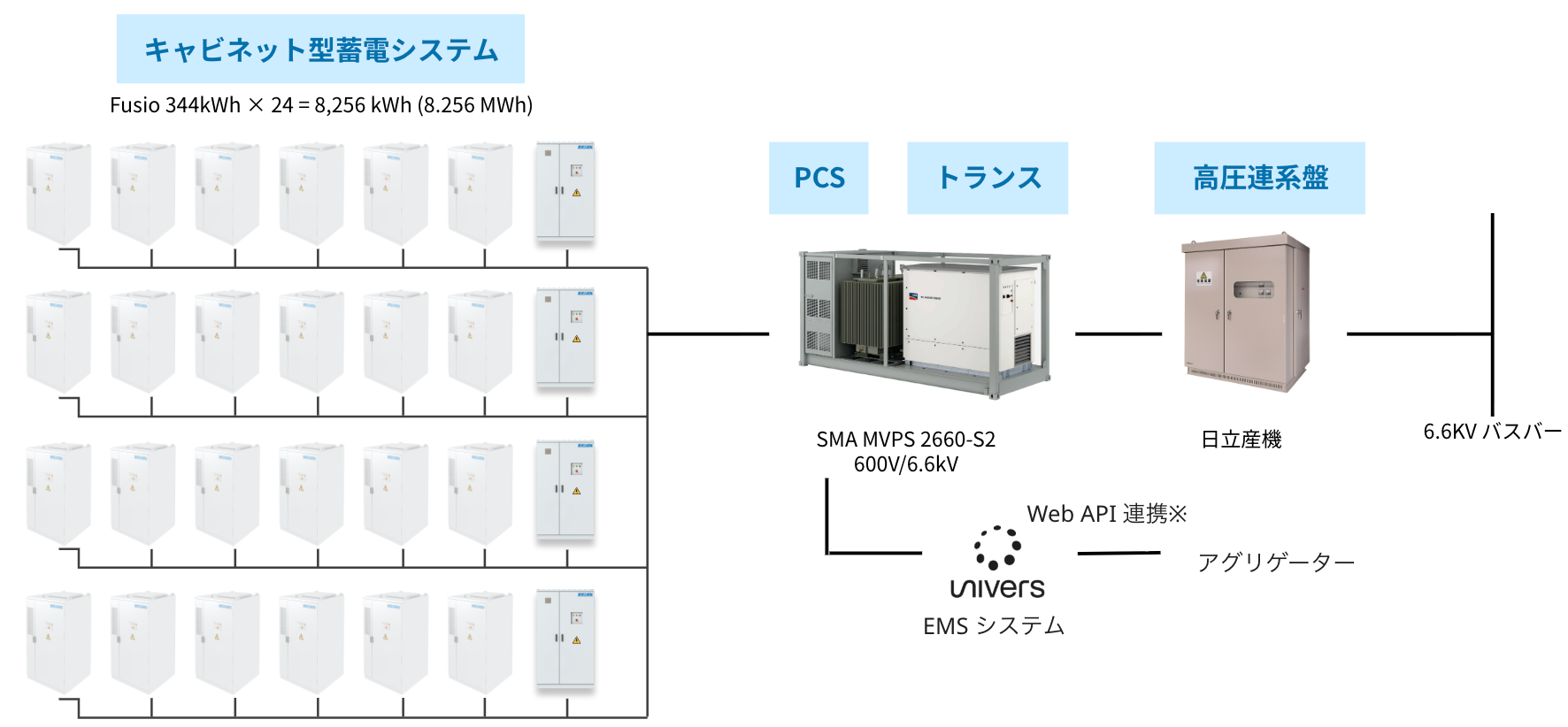

system configuration diagram

* Due to the web integration, a quick switchover is possible even if the aggregator's performance deteriorates. Please contact Univers for details.

Product Features


Active safety


  • Equipped with a system-level aerosol fire suppression system.
  • Battery module IP67, system IP55 protection rating
  • Integrated design of BMS (Building Management System), thermal management, and fire protection functions.


Flexible design


  • Space-saving design improves installation flexibility.
  • Integrated design for easy transport and installation
  • Supports expansion through parallel connection of multiple units.


Advanced operational management


  • Real-time monitoring of system status and operating conditions.
  • Precise thermal management with a temperature difference of less than 3°C between cells.
  • Supports standalone cabinet operation, system efficiency of over 94%.

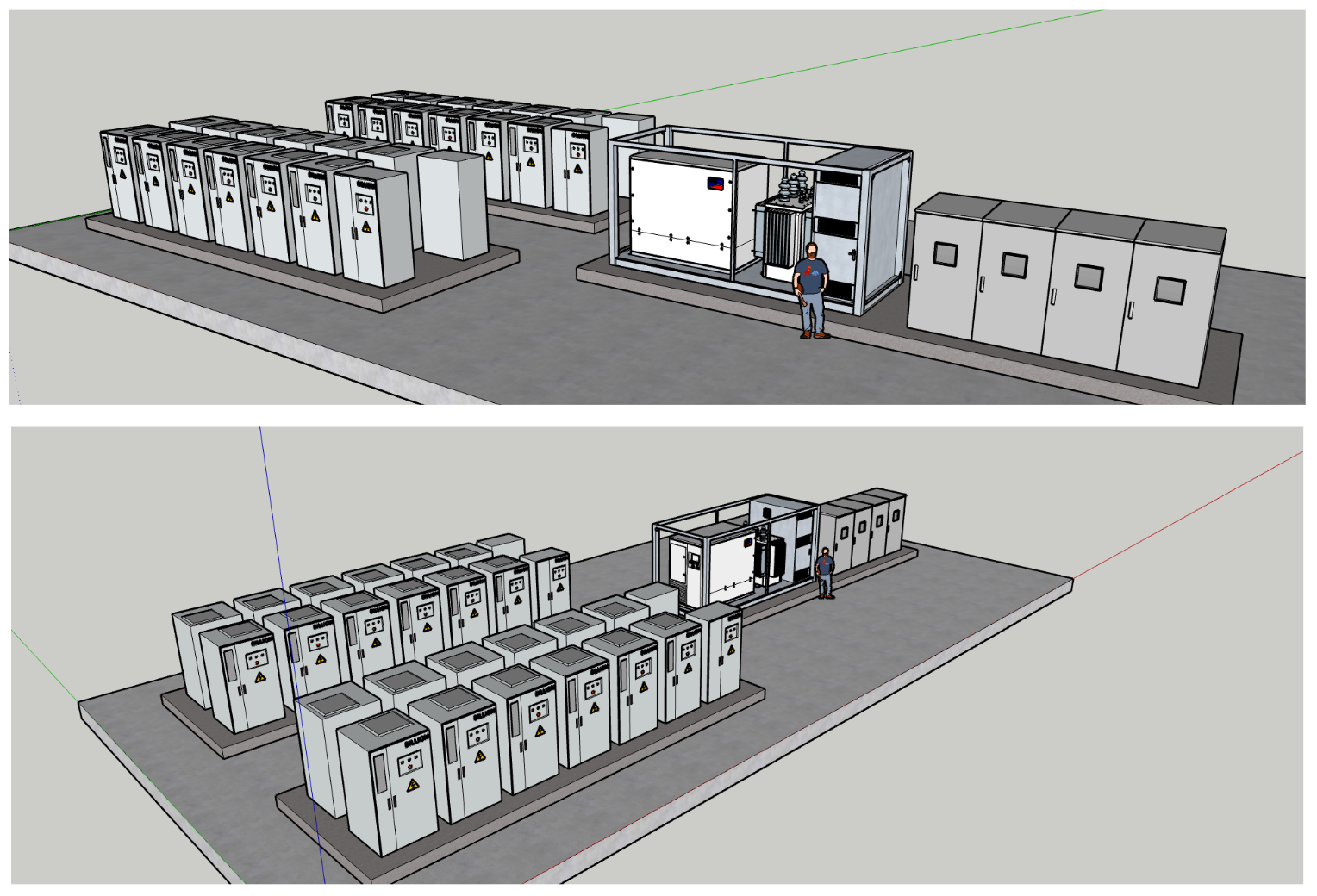

Energy storage system layout diagram
