Solar hybrid
inverter

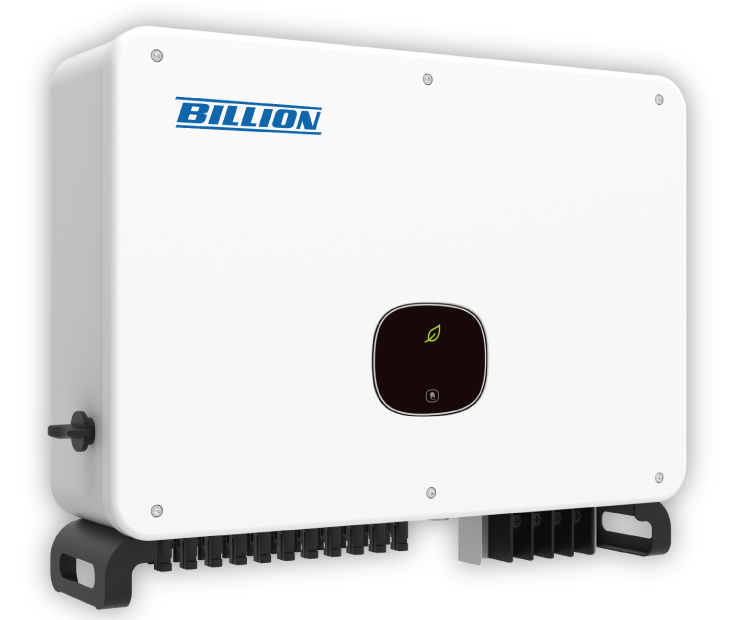

BNI 40-60KTL3-X LV
- Number of MPPT circuits: 3
- Waterproof and dustproof protection rating: IP65
- AC rated output voltage: 380V
- Rated output frequency: 50Hz/60Hz
Maximum conversion efficiency 98.8%, Euro efficiency 98.4%
Maximum DC input voltage: 1100V
PV string current 12.5A, compatible with bifacial solar panels.
AC/DC surge protection level 2
OLED touch display
The communication interface supports USB/RS485.
Technical specifications
*This information is for reference only; the actual product illustrations take precedence. We will not notify you separately if the specifications change.
